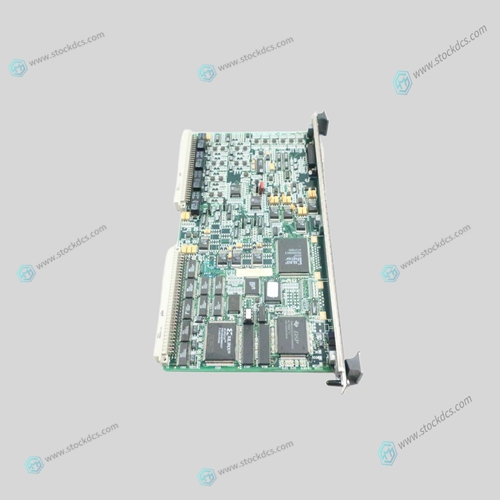

GE DS2020EXTYG2 Switch input module

The twisted pair port and fiber optic port on the media converter can operate in half-duplex, full-duplex, or auto-negotiate the duplex mode. The media converter sets the duplex mode automatically through auto-negotiation. With auto-negotiation, if the end-node is capable of full-duplex, the port is set automatically to full-duplex mode. If the end-node is capable of half-duplex, the port is set automatically to half-duplex mode.

The AT-MC115XL and AT-MC116XL media

converters can operate in fullduplex, half-duplex, or auto-negotiate the duplex mode. However, the endnodes connected to these media converters must operate in the same duplex mode to avoid a duplex mode mismatch, which can result in poor network performance. Figure 3 shows an example of a duplex mode mismatch. A repeater (Unit 1), capable of operating in half-duplex mode only, is connected to the 100Base-SX port on the media converter, while a switch (Unit 2), capable of either half- or full-duplex mode, is connected to the 10Base-T/100Base-TX port on the media converter.

Do you want to know about our products?

We have a large amount of inventory and high quality, out of production control system components, DCS system accessories, robot system accessories, large servo system spare parts. PLC module, DCS module, CPU module, IO module, DO module, AI module, DI module, network communication module, Ethernet module, motion control module, analog input module, analog output module, digital input module, digital output module, redundancy module, power module, relay output module, relay input module, processor module and other major brands.

This article from the temporal Ming sheng automation equipment co., LTD., reproduced please attach this link: http://www.stockdcs.com/
