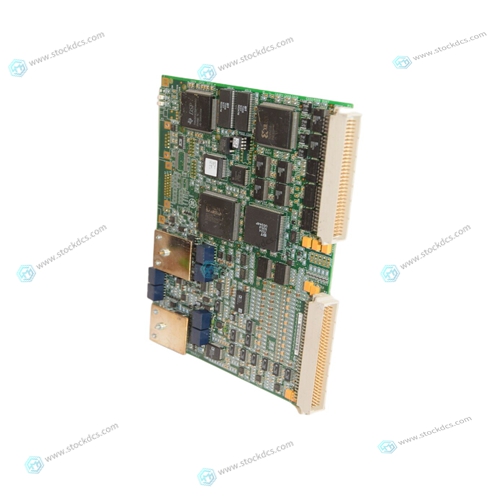

GE DS215GHDQG5AZZ01 Dual channel assembly module

Follow the guidelines below to test and troubleshoot the installation in the event of a problem occurs. If the PWR LED is OFF, do the following; ❑ If the unit is installed on a desktop, check to be sure that the power adapter is securely connected to a power outlet and that the power adapter cable is securely connected to the back of the media converter. ❑ If the unit is installed in an AT-MCR12 chassis, check that the unit is fully seated in the slot. ❑ Verify that the power outlet has power by connecting another device to it. ❑ Try using another power adapter of the same type that came with your media converter.

If the LNK 10 or 100 LED for the twisted pair port is OFF, do the following:

 ❑ Check that the end-node connected to the port is powered ON and is operating properly. ❑ Check that the twisted pair cable is securely connected to the twisted pair port on the media converter and on the remote end-node. ❑ Make sure that the twisted pair cable does not exceed 100 meters (328 feet) and that you are using Category 3 or better cable for 10 Mbps operation or Catergory 5 or better for 100 Mbps operation. ❑ Verify that both end-nodes connected to the media converter are operating at the same speed. Both must be operating at either 10 Mbps or 100 Mbps.

Do you want to know about our products?

We have a large amount of inventory and high quality, out of production control system components, DCS system accessories, robot system accessories, large servo system spare parts. PLC module, DCS module, CPU module, IO module, DO module, AI module, DI module, network communication module, Ethernet module, motion control module, analog input module, analog output module, digital input module, digital output module, redundancy module, power module, relay output module, relay input module, processor module and other major brands.
