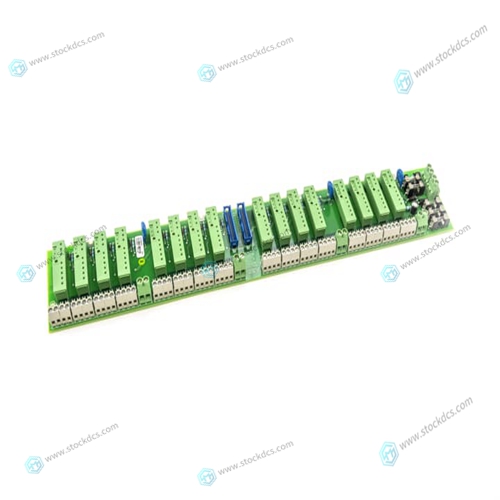

ABB DSTX 180 3BUR980025R1 Connection unit

The system port is the serial interface of the Micro Panel GF-1, and is used for various additional system functions. The system port is a standard RS232 interface. The system port is used for transferring project data to the memory card of the GF-1 (Download, serial link with host PC) instead of loading projects directly on the memory card on the PC.

The system port is not isolated and is not earthfree!

Pin 9 of the System Port can optionally be used for supplying external additional hardware with the system supply voltage (+5V, jumper JP8 on the mainboard). The output is not short circuit protected and not overload protected and must only be used in conjunction with original GF-1 additional hardware. Using this supply for other products is not
