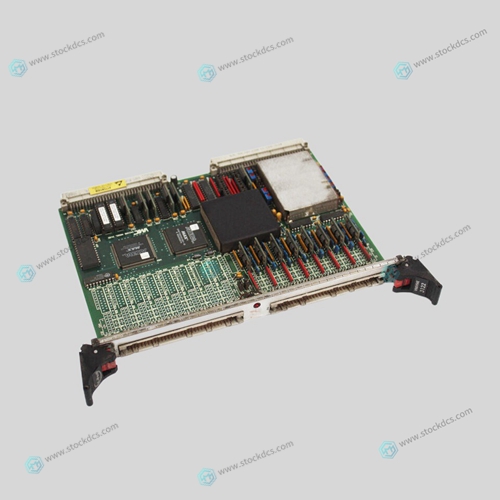

GE VMIVME-3122A-420000 Thermocouple input module

Strip the wires 0.27 inch (7mm). 2. Attach the wires to the connector as indicated in the diagram. Note: Make sure the screws on the PCD connector are tightened down firmly on the wiring. Caution Do not solder the tips of the cables going into the PCD connector. This can result in a loose connection.The J1 signal interface accepts step,direction and enable signals from an indexer or other source and outputs an enabled signal which indicates the 6410 is applying current to the motor windings.

Input that determines the direction of motor rotation.

 If standard motor wiring is followed, the motor will turn clockwise if the opto current is zero. The sense of the DIR + input can be reversed by reversing the connection of either (but not both) motor phase connectors (i.e. switching A & A OR B & B). Refer to the figure at the end of the table for timing and circuit information.
