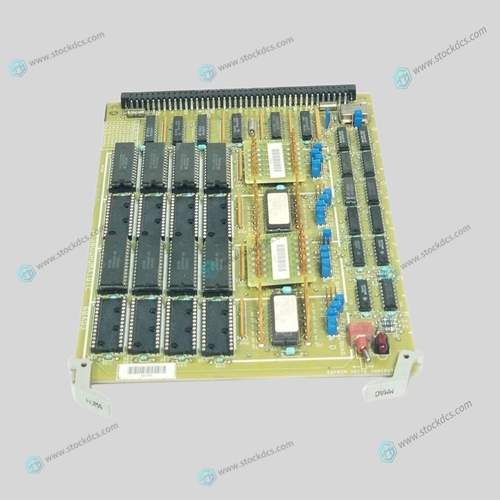

GE DS3800HUMA Output logic module

The 6410 has an “enabled” output which is on when the drive is enabled and off when the drive is disabled or faulted due to any of the following:

• Output overcurrent (line-to-line or line-to-neutral short)

• Bus overvoltage

• Low voltage supply out of tolerance.

Use the troubleshooting table

 the simple circuit shown below to diagnose and correct most problems. If you are unable to achieve satisfactory operation, contact your local Pacific Scientific Distributor or the Applications Engineering Department.If you suspect that the 6410 drive has been damaged, DO NOT simply replace it with another and apply power. Re-check the power supply design and verify that it meets all requirements. Improper supply design is the most common cause for damaged drives.
