  • GE IS215VCMHIH2B Channel output card

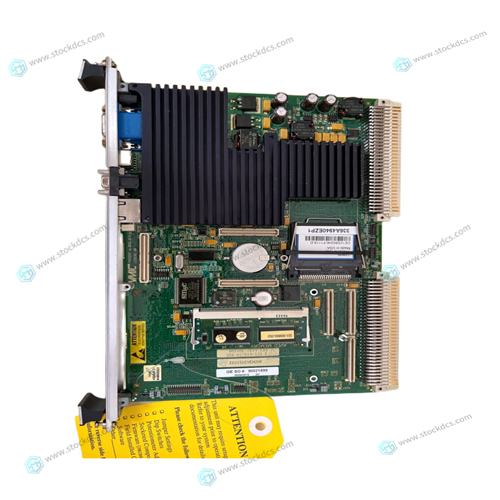

GE IS215VCMHIH2B Channel output card

GE IS215VCMHIH2B Channel output card

GE IS215VCMHIH2B Channel output card

When changing BlkType to 0 to get an analog torque block, set KVP to 1, KVI to 0, and the other items in the above list to appropriate values to get the system working as desired.This mode allows the differential analog voltage between terminals J4-1 and J4-2 to set the motor’s shaft velocity (shaft speed). The overall gain of this block (output shaft velocity per input volt) is set by CmdGain in krpm/V and should be set by the user to the desired value.

Danaher Motion Pacific Scientific

1  Analog input differential amplifier with 1200 Hz low pass filter.

2. High resolution A/D sampled at the velocity loop update rate and added to ADOffset.

3. ADF0 adjustable low pass filter to become AnalogIn.

4. Range clamped by VelLmtHi and VelLmtLo.
