The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

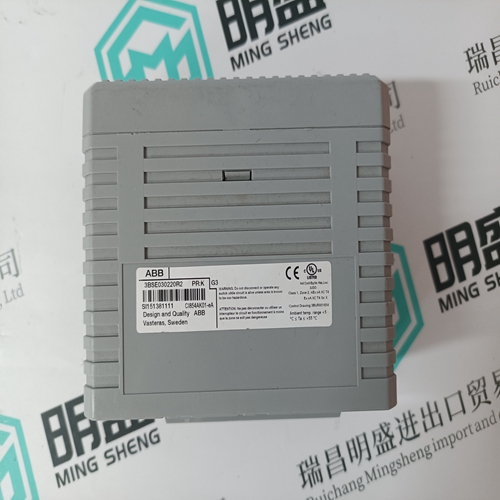

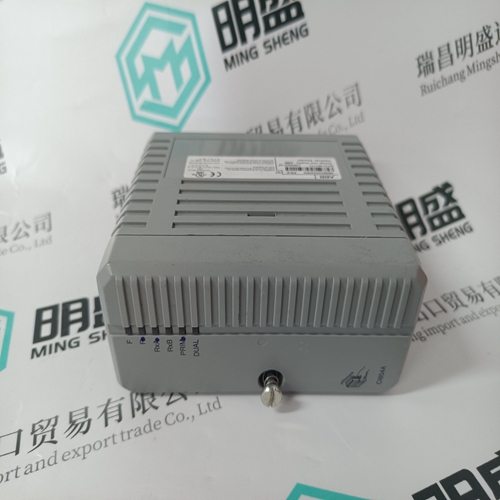

CI854A-eA 3BSE030221R2 processor module

Setting the address DIL switch No. 8 The address DIL switch is used to define whether the outputs should switch on again after overload or short-circuit automatically or by acknowledgement. Meaning of the switch positions: OFF (factory setting): After the error has been eliminated, the outputs switch on again automatically. ON: After the error has been eliminated, the outputs switch on again by pressing the test button or by acknowledgement via the PLC program (connection element CS31QU) or via the serial interface on the central unit.

With this setting, the module uses two addresses on the CS31 system bus. 24 binary input and 16 binary output channels are occupied. The module has 16 inputs, 8 outputs and 8 combined inputs/ outputs now. An+1,00...15 and En1,08...15 are not used. If needed, these addresses can be used for other modules.

I/O configuration

The module ICDG 32 L1 does not store any configuration data. The 8 combined input/output channels are defined as inputs or outputs by the user program. That means, that each of the combined inputs/outputs can be used as an input or an output (or readable output) by reading data from it or sending data to it, respectively. If used as an input, no signal ”1” may be sent to the respective output. For setting the DIL switches and address allocation see also figures 4.3.4–3 and 4.3.4–4 (one page above).Remark: The module ICDG 32 L1 reads the positions of the DIL switches only once during initialization after power ON. If switch positions are changed during operation of the module, these alterations become effective not before the next initialization. Exception: The position of DIL switch No. 8 (defining whether the outputs should switch on again after overload or short-circuit automatically or by acknowledgement) is currently updated

Normal operation

 The module initializes itself after power ON. During initialization all LEDs are ON.
If the CS31 system bus does not run, the LED 3 flashes.
The LED 3 goes out again, when the bus operation runs correctly and the module does not detect an error.
The 16 green and the 16 yellow LEDs 1 show the signal statuses of the 32 channels. Diagnosis and display Diagnosis functions: – Output short-circuit/overload (I > 0.7 A) – Message of a short-circuit/overload to the central unit – After storing this information, holding it ready for reading (error class and error location) – Error in the module (Unit error) – Error on the CS31 system bus (Bus error)
