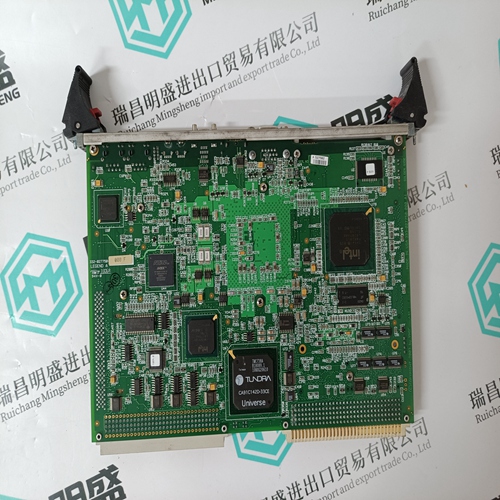

VMIVME-7750-734001 gas turbine electric card

– For use in the binary area : Transmitting : 2…15 bytes 2…15 – For use in the word area : Transmitting : 1…8 words 101…108 – Default value : 4 – Range of values : 2…15 and 101…108 A change of this system constant becomes effective : – with the next warm start or – with the next cold start. Note : The default setting – in the binary area is : - transmit 4 bytes and - receive 4 bytes. This is defined by the default combination KW 00,10 = KW 00,11 = 0. The configured combination KW 00,10 = KW 00,11 = 4 has the same result as the default combination. The combination KW 00,10 = KW 00,11 = 100 is inadmissible ! It would mean : Transmit 0 words and receive 0 words. When employed in the word area, the unused higher 8 channels of the address can be used by an analogue unit (no KR/KT). A change of this system constant becomes effective : – immediately. ● Size of the receiving area of the slave central unit – Absolute identifier : KW 00,11 – Symbolic identifier : SLV_REC

Meaning of the values of the constant

The slave central unit can be used at the CS31 system bus either in the binary area or in the word area. It is possible to set the number of bytes (or words) which are to be received by the slave central unit from the master central unit. – For use in the binary area : Receiving : 2…15 bytes 2…15 – For use in the word area : Receiving : 1…8 words 101…108 – Default value : 0 – Range of values : 2…15 and 101…108 A change of this system constant becomes effective : – with the next warm start or – with the next cold start. Note : The default setting – in the binary area is : - transmit 4 bytes and - receive 4 bytes. This is defined by the default combination KW 00,10 = KW 00,11 = 0. The configured combination KW 00,10 = KW 00,11 = 4 has the same result as the default combination. The combination KW 00,10 = KW 00,11 = 100 is inadmissible ! It would mean : Transmit 0 words and receive 0 words. When employed in the word area, the unused higher 8 channels of the address can be used by an analogue unit (no KR/KT). A change of this system constant becomes effective : – immediately.

Central unit cycle time

 – Absolute identifier : KD 0,0 – Symbolic identifier : ZYKL_ZEIT – Meaning of the values of the constant : The central unit program is processed cyclically in the time intervals stated by the set cycle time. The entries are made in the unit of measurement (ms). The smallest cycle time that can be entered is 5 ms. Only integral multiples of 5 ms are permissible. – Range of values : 5…100 for a master CPU 5...250 for a slave CPU – Default value : 10 A change of this system constant becomes effective : – with the next program start.

Terminal mode : available functions

The terminal mode is used with the active mode of the central unit 07 KR 31 or 07 KT 31. The central unit can be programed,tested and all operative functions are availables. The communication is in ASCII protocol. This terminal mode can be used with the aid of a terminal,the TCZ service device or the ABB Procontic programming software 907PC331. For a complete description refer to Vol 7 part 3. The list of the different commands can be displayed with the command H. The descripton of the commands is only in english language.
