The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

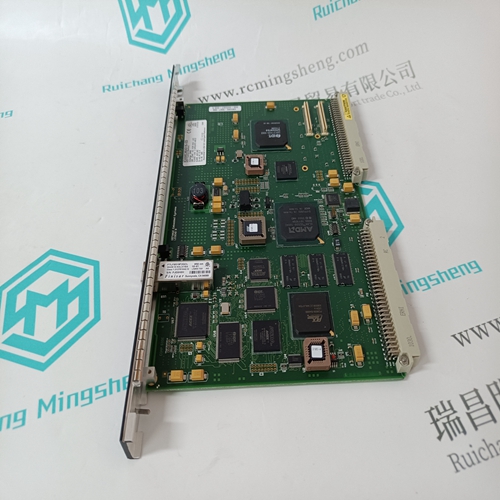

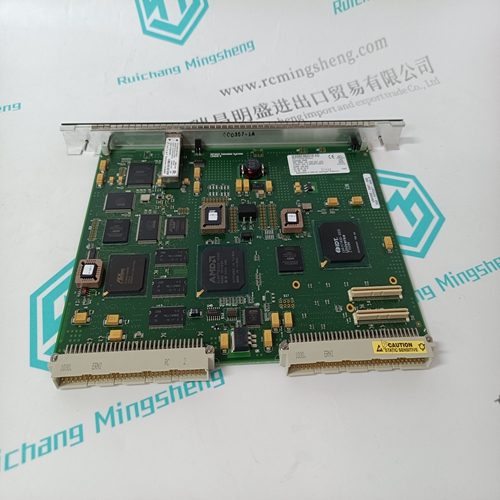

IC698CMX016-ED VMIVME-5567-000 Gas turbine module

Preset start values You can preset both positive and negative start values for the counter. The counting operation starts at the start value and is continued in correspondence with the arrows in the diagram until the enabling is stopped or a start value is loaded again. Negative start value The minimum negative start value is –32768 (8000H). By presetting a negative start value it is thus possible to count a maximum of 32768 pulses up to the zero crossing of the counter. Positive start value If a positive start value is preset, the counter counts up to the value of +32767 (7FFFH), continues the counting operation at the value of–32768 (8000H) and then signals the zero crossing when reaching the transition from –1 to 0. The minimum positive start value is 1. If you preset this value, 65535 pulses will be counted up to the zero crossing. In order to count more than 32767 pulses up to the zero crossing, the start value has to be calculated according to the following equation: Start value = 32767 – (number of pulses – 32768)

Technical data 07 KR 91

In general, the technical system data listed in volume 2 of the system description ABB Procontic CS31 are valid for all modules and central units. Additional data or data which are different from the system data are listed as follows.

EIA RS–232 Programming with 907 PC 33 by means of IBM PC (or compatible) Man–machine communication yes, e.g. with ABB Procontic Operating Station 35 BS 40 Display and updating of timers, counters and parameters yes, e.g. with TCZ Service Device Electrical isolation 07 KR 91 R202 versus mains, versus binary inputs and outputs, versus CS31 system bus interface (see also Fig. 1–6) 07 KR 91 R252 versus binary inputs and outputs, versus CS31 system bus interface (see also Fig. 1–7) Potential differences In order to avoid potential differences between the 07 KR 91 central unit and the peripheral device connected to the COM1 interface, this device is supplied from the switch cabinet socket (see also the earthing connections in Figures 1–3 and 1–4).

Mechanical data

according to DIN EN 50022–35, 15 mm deep. The DIN rail is located in the middle between the upper and the lower edges of the module. Fastening by screws using 4 M4 screws. Width x height x depth 240 x 140 x 85 mm Wiring method by removable terminal blocks with screw-type terminals, conductor cross section max. 2.5 mm2 Weight 1.6 kg Dimensions (for mounting) see the following drawing The device is 85 mm deep. The interface connector COM1 is set deeper so that the mounting depth required does not become any larger even with detachable interface cables. If, however, a DIN rail is used, the mounting depth is increased by the overall depth of the rail

Apart from the basic ”Regulations for the Setting up of Power Installations” DIN VDE* 0100 and for ”The Rating of Creepage Distances and Clearances” DIN VDE 0110 Part 1 and Part 2 the regulations ”The Equipment of Power Installations with Electrical Components” DIN VDE 0160 in conjunction with DIN VDE 0660 Part 500 have to be taken into due consideration.
