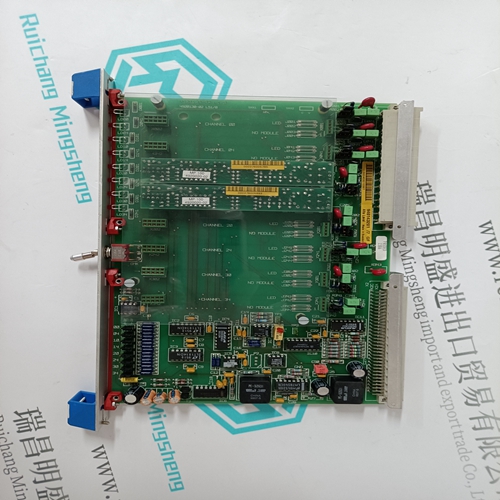

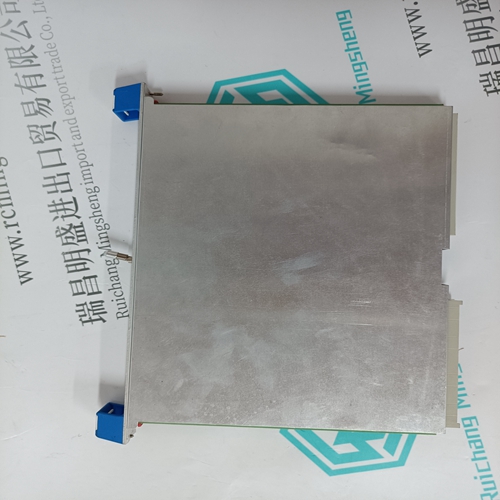

IBA 940143201 Control card

The device is 85 mm deep. The interface connectors COM3 and COM4 are set deeper so that the mounting depth required does not become any larger even with detachable interface cables. If, however, a DIN rail is used, the mounting depth is increased by the overall depth of the rail.vertical, terminals above and below Cooling The natural convection cooling must not hindered by cable ducts or other material mounted in the switch cabinet.

The comprehensive description for this central unit is located in part 3 of this volume. Brief description The central unit 07 KR 31 works either as
bus master in the decentralized automation system ABB Procontic CS31 or as
intelligent I/O module (slave remote processor) in the decentralized automation system ABB Procontic CS31 or as
stand–alone central unit. The module is supplied by 24 V DC or by 120 V AC or 230 V AC. Main features
12 binary inputs
8 binary relay outputs
1 output with 24 V DC (regulated) for the 230-V-AC versions
1 counting input for counting frequencies up to 10 kHz
1 CS31 system bus interface for system expansion

Serial interface COM1

 – is set as programming interface – can be set as an ASCII interface for connecting peripheral devices (e.g. MMC devices) – can be set as a MODBUS interface: master and slave
Real–time clock
LEDs for displaying the binary input and output signals as well as operating conditions and error messages
Mounting by insertion into the plug-in base ECZ. The plug-in base can either be snapped on a DIN rail or fastened by screws. Wiring over the plug-in base ECZ.
Built-in lithium battery for back-up of the RAM contents, its lifetime is 10 years.
Reading and writing protection of the user program by password
Programming with the programming software 907 PC 331
User program containing max. 2 k of instructions
RUN/STOP switch for starting and aborting the program execution

Extensive diagnosis functions – Self–diagnosis of the central unit – Diagnosis of the ABB Procontic CS31 system bus and the connected modules

The central unit 07 KT 31 works either as

bus master in the decentralized automation system ABB Procontic CS31 or as
intelligent I/O module (slave remote processor) in the decentralized automation system ABB Procontic CS31 or as
stand–alone central unit. The module is supplied by 24 V DC or by 120 V AC or 230 V AC. Main features
12 binary inputs
8 binary transistor outputs
1 output with 24 V DC (regulated) for the 230-V-AC versions
1 counting input for counting frequencies up to 10 kHz
1 CS31 system bus interface for system expansion
Serial interface COM1 – is set as programming interface – can be set as an ASCII interface for connecting peripheral devices (e.g. MMC devices) – can be set as a MODBUS interface: master and slave
Real–time clock
LEDs for displaying the binary input and output signals as well as operating conditions and error messages
Mounting by insertion into the plug-in base ECZ. The plug-in base can either be snapped on a DIN rail or fastened by screws. Wiring over the plug-in base ECZ.
Built-in lithium battery for back-up of the RAM contents, its lifetime is 10 years.
Reading and writing protection of the user program by password
Programming with the programming software 907 PC 331
User program containing max. 2 k of instructions
RUN/STOP switch for starting and aborting the program execution
