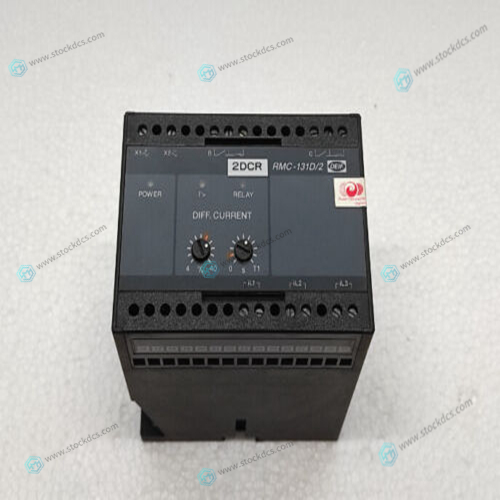

DEIF RMC-131D/2 relay

DEIF RMC-131D/2 relay

Before any secondary injection tests are carried out, the voltage transformer supply to the relay should be isolated by removing the VT secondary link/fuses. This is to prevent any accidental back energisation of the system via the VT from the test supplies Since the relay has very little hysteresis the pick-up and drop-off values of the relay are very close. This has the effect of causing the led to flicker as the setting is approached. The pick-up value should be taken as the value at which the green timer start led is fully illuminated without flickering. The pick-up value of the relay should be measured with the voltage setting switches in each of the positions shown in Table 1.
