The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

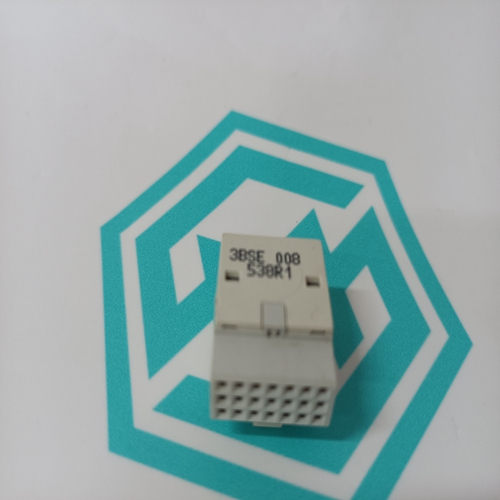

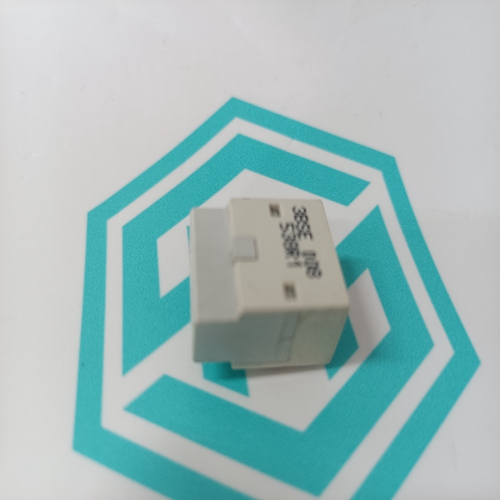

3BSE008538R1 Terminal module

This document is a hardware user’s guide for the SST 5136-PFB-VME interface card. This card allows an application running on a VMEbus host computer to communicate with ProfiBus Networks using Profibus DP and FDL. 1.2 Conventions 1.2.1 Style The following conventions are used throughout the manual: • Listed items, where order is of no significance, are preceded by bullets. • Listed items, to be performed in the order in which they appear, are preceded by a number. • References to commands, or dialog boxes are italicized. • User entry text is in Courier 9 pt font. • Buttons that the user may press are in SMALL CAPS. 1.2.2 Special Notation The following special notations are used throughout the manual: Warning messages alert the reader to situations where personal injury may result. Warnings are accompanied by the symbol shown, and precede the topic to which they refer. Caution messages alert the reader to situations where equipment damage may result. Cautions are accompanied by the symbol shown, and precede the topic to which they refer. A note provides additional information, emphasizes a point, or gives a tip for easier operation. Notes are accompanied by the symbol shown, and follow the text to which they refer.

Card Overview

 The 5136-PFB-VME card can: • act as a DP slave • act as a DP master • send and receive FDL (layer 2) messages The card supports simultaneous operation in all these modes. The card supports the standard ProfiBus baud rates of 9.6K, 19.2K, 93.75K, 187.5K, 500K, 750K, 1.5M, 3M, 6M and 12M baud. The card has an onboard Intel i960 processor with 512 Kbytes of local RAM., that handles the communication protocol and data formatting into the shared RAM. The 5136-PFB-VME consists of: a VMEbus interface, with capabilities as outlined in the Specifications section of this manual five registers in VME short address space for control of the card The card has an additional 256 Kbytes of RAM which is shared with the host as either a single block of 256 Kbytes (linear addressing mode) or as one of sixteen, 16 Kbyte pages (paged mode). In paged mode, the host determines which page of this shared RAM is mapped into the host memory by writing to a register on the card. This block of memory contains all the tables and buffers that are used to pass information between the interface card and the application software running in the host computer. This approach ensures a fast and simple connection between the host computer and the card software. In addition, the card has 512 Kbytes of sectored flash memory, for storage of programs and configuration data. ProfiBus configuration information may also be stored in flash.

Reference Documents

For information on ProfiBus, refer to one of the following: • ProfiBus standard DIN 19 245 parts 1, 2 and 3. Part 1 describes the low level protocol and electrical characteristics, part 2 describes FMS, part 3 describes DP • European standard EN 50170 • ET 200 Distributed I/O System Manual, 6ES5 998-3ES22 Refer to the IEEE Standard for a Versitile Backplane Bus: VMEbus, ANSI/ IEEE Std. 1014-1987 for explanations of VMEbus Terminology.

SST guarantees that all new products are free of defects in material and workmanship when applied in the manner for which they were intended and according to SST’s published information on proper installation. The Warranty period for the 5136-PFB-VME is 10 years from the date of shipment. SST will repair or replace, at our option, all products returned freight prepaid which prove, upon examination, to be within the Warranty definitions and time period. The Warranty does not cover costs of installation, removal or damage to user’s property or any contingent expenses or consequential damages. Maximum liability of SST is the cost of the product(s)
