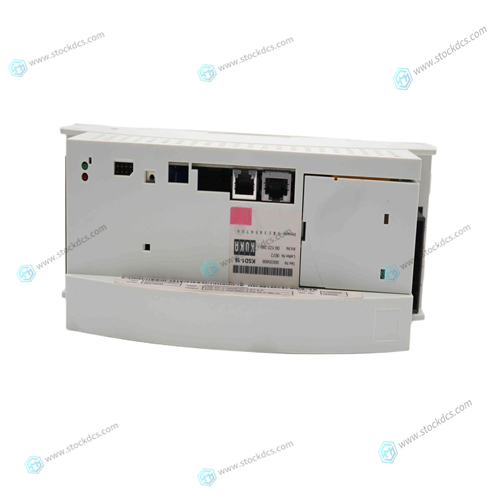

KUKA KSD1-16 Serial Link Controller

KUKA KSD1-16 Serial Link Controller

KUKA KSD1-16 on-board system includes 7 sensors, 1 weft lifting electromagnet, main motor, fan, idle motor, weft accumulator, main clutch, brake, idle clutch, weft finding clutch, etc. The three-phase AC power supply is first connected to the automatic air switch QF, and its protection current is 20A. The power transformer provides two sets of AC 21V voltage, and one set of full-wave rectification filter generates DC 24V voltage, which is used for the power supply of the main clutch, slow clutch coil, photoelectric encoder and alarm lamp;

rand display

ABB、GE/FUANC、FOXBORO、TRICONEX 、BENTLY、A-B、EMERSON 、MOTOROLA、XYVOM、HONEYWELL 、REXROTH、KUKA、NI、DEIF、Yokogawa、WOODWARD、Reliance Electric、SCHNEIDER 、MOOG、PROSOFT、KOLLMORGEN、ICS TRIPLEX、HIMA

The angle sensor of KUKA electric control system uses absolute value photoelectric encoder to accurately give any positioning angle of the loom. The PLC is modular, and the input and output modules can be increased or decreased as required. The warp stop button and the warp stop piece constitute the warp stop detection device. This button can control the stop of the loom at the rear of the loom, and can be used for loom debugging after being pulled out.

Warranty: 365 days    Goods status: new/used      Shipping method: Courier delivery
