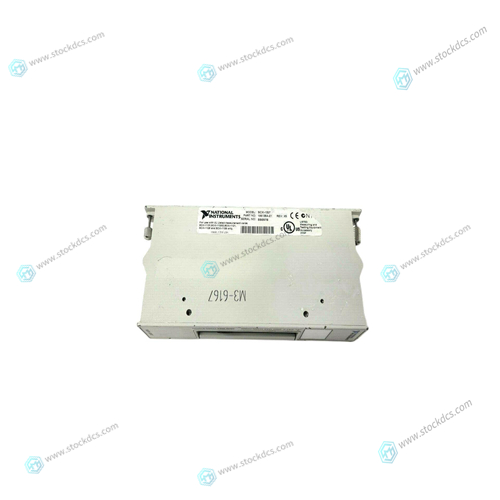

NI SCXI-1327 Redundant channel card

Detailed information:

NI SCXI-1327 Redundant channel card

To set the attenuation on the SCXI-1327 input channel, you need to move the two corresponding switches to the corresponding attenuation settings, and there is a screen layer prompt on the PCB. Move the switch to the screw terminal to set the attenuation to 1:1 or move it to the opposite direction to set the attenuation to 100:1?. As shown in the figure, there is a small dot at the other end of the switch, which may cause some misunderstanding. An example of switch selection is shown below. The first switch sets attenuation to 100:1, and the second switch sets attenuation to 1:1. In addition, you must ensure that the attenuation set in MAX is consistent with that here.

Dimensions

• Product Net Depth / Length: 500mm




• Product Net Height: 400mm




• Product Net Width: 120mm




• Product Net Weight: 2kg

Brand display

 ABB、GE/FUANC、FOXBORO、TRICONEX 、BENTLY、A-B、EMERSON 、MOTOROLA、XYVOM、HONEYWELL 、REXROTH、KUKA、NI、DEIF、Yokogawa、WOODWARD、Reliance Electric、SCHNEIDER 、MOOG、PROSOFT、KOLLMORGEN、ICS TRIPLEX、HIMA

Payment method and delivery

Shipment: EMS,DHL,UPS & FEDEX

Payment: T/T or Western Union

 This article from the temporal Ming sheng automation equipment co., LTD., reproduced please attach this link: http://www.stockdcs.com/
