Home > Product > DCS control system > TK803V018 3BSC950130R1 cable

  • TK803V018 3BSC950130R1 cable
  • TK803V018 3BSC950130R1 cable
  • TK803V018 3BSC950130R1 cable
TK803V018 3BSC950130R1 cable TK803V018 3BSC950130R1 cable TK803V018 3BSC950130R1 cable

TK803V018 3BSC950130R1 cable

The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

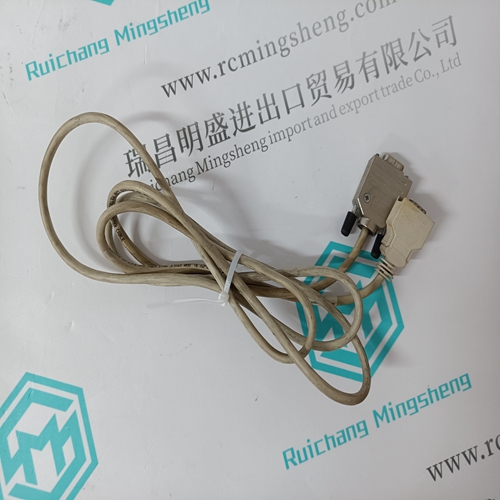

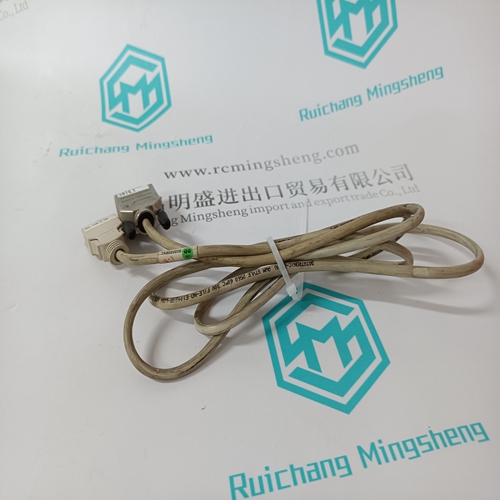

TK803V018 3BSC950130R1 cable

You are reminded the ASP890300 is not compatible with J200 or S901 RIO heads that communicate with J810/J812 modules. Use of the ASP890300 requires the use of an S908 or CRP type RI/O head. The ASP890300 is not physically compatible if installations use the following adapter models: In these installations, you will need to: z replace the primary backplanes (housings) z perform power calculations to determine if additional supplies are needed (see I/O Module Current Requirements, page 614) z consider backplane interconnection cables z review ASCII Port and coaxial cable connections Primary Backplane Replacement ASP890300 modules are compatible with: z AS-H810-208 (10", ASP890300 plus three I/O modules)* z AS-H810-209 (10", ASP890300 plus three I/O modules)* z AS-H819-209 (19", ASP890300 plus six I/O modules) z AS-H827-209 (27", ASP890300 plus ten I/O modules) *Repair/service exchange only.

Power Considerations

If the primary backplane power requirements exceed the ASP890300 capabilities, enough I/O modules must be removed from the primary backplane to bring the current load within specified limits. In this case, an additional backplane and power supply will need to be added in the configuration unless the extra modules can be added to an existing powered backplane. For further reference, see Power Supply Capacities in Remote Drop Secondary Applications, page 613 and I/O Module Current Requirements, page 614. Secondary backplanes AS-H819-100 and AS-H827-100 support 7 and 11 I/O modules, respectively. Subtract two modules if power supplies need to be added

These have BNC type connectors which are not compatible with the F style connections on ASP890300 modules. Unless otherwise accommodated, installers may use BNC Jack to Male "F" Connector Adapters, part number 52-0724-000.

AC Power Connector Rewiring

 Rewiring is required to accommodate one 2 terminal and one 3 terminal connector, which include a 115/230VAC jumper selection option as opposed to the switch selectable option in the original units. Rewiring requires a small slotted screwdriver. Power Considerations If replacing high end slot mount PLCs: Both +5VDC I/O power and the Combined load in PC-0984-680/5s and PC-0984-780/5s are rated 1A higher than the ASP890300. If the Primary backplane power requirements exceed the ASP890300 capabilities, enough I/O modules must be removed from the primary backplane to bring the current load within specified limits. In this case, an additional backplane and power supply will need to be added in the configuration unless the extra modules can be added to an existing powered backplane. See I/O Module Current Requirements, page 614 and Power Supply Capacities in Remote Drop Secondary Applications, page 613. Secondary backplanes AS-H819-100 and AS-H827-100 support 7 and 11 I/O modules, respectively. Subtract two modules if power supplies need to be added.

Obtain the latest price of TK803V018 3BSC950130R1 cable
