  • ABB 3HAC14549-3/06X Rectifier

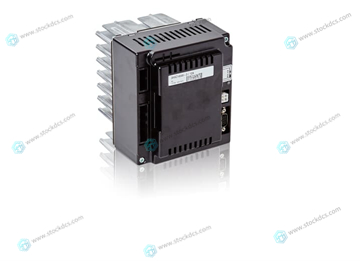

ABB 3HAC14549-3/06X Rectifier

ABB 3HAC14549-3/06X Rectifier

Detailed

ABB 3HAC14549-3/06X Rectifier

Electrical connections to the 3HAC14549-3/06X Board are made through four 96-pin DIN connectors P1 through P4, all of which have the pin configuration shown in Figure 2-4 on page 37. P1 connects the 3HAC14549-3/06X Board to the VMEbus backplane, and contains the address, data, and control lines, and all additional signals necessary to control VMEbus functions related to the board. P2 provides the user pins necessary for external synchronization of the board as well as the upper address/data lines. User pin assignments are listed in Table 2-6

96-pin DIN connector (2 each) i.e., DIN 96CSC WTR4093 with all row C connections shorted together and to row B and all row A connections shorted together. This connector(s) plugs into the3HAC14549-3/06X P3 and P4 connectors allowing input voltage to be applied to all channels simultaneously. Common mode adapter 96-pin DIN connector (2 each) i.e., DIN 96CSC WTR4093 with rows A and C shorted together. This connector(s) plugs into the 3HAC14549-3/06X P3 and P4 connectors allowing for common-mode calibration.
