ABB DSQC1032 3HAC058665-001 Analog add on

Detailed

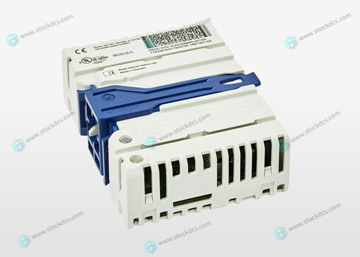

ABB DSQC1032 3HAC058665-001 Analog add on

The DSQC1032 3HAC058665-001 contains from 1 to 64 data blocks, and is located at board address $0080. The size of the buffer is controlled by the Buffer Configuration Control bits D11 to D15 in the CCR. The buffer can be adjusted from 16 to 1,024 data words in six binary increments. A single update of all locations in the buffer is a data scan, and is executed at the user-defined sampling rate or the 100 kHz default rate. Data blocks within the buffer are organized with the first block located at the lowest word address in the buffer, and with the data word in the last block located at the highest address. Total on-board RAM size is 2048 words. Memory locations $0880 through $0FFE may be used as scratch pad memory. Also, data buffer memory not used for storage of scanning input data may be used as on-board scratch pad memory

A complete set of digitized values for all active input channels is a data block, and it can consist of 1, 8, 16, 32, or 64 channels. Block size is controlled by bits D05 - D00 in the CCR, as shown in Table 3-7 on page 53. Data words within a block are organized according to how the Group Configuration bits in the CCR are programmed. Table 3-7 on page 53 lists the combinations of buffer and block size available
