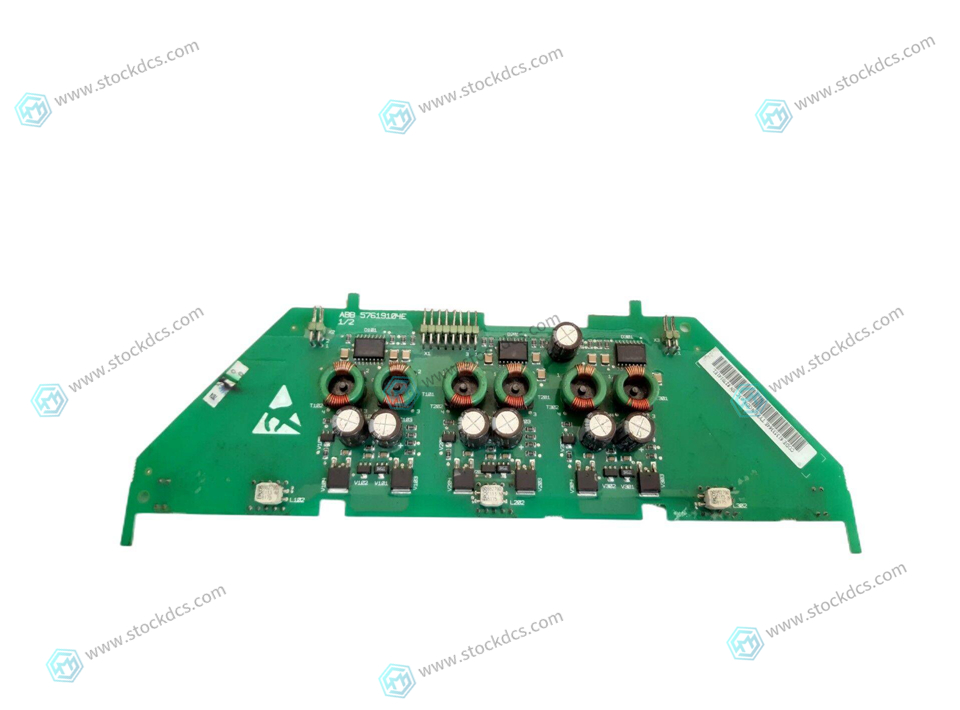

ABB NGDR-03C Analog quantity module

ABB NGDR-03C Analog quantity module

ABB NGDR-03C Analog quantity module

In any high-gain, direct coupled, signal path, zero offset errors at the input are multiplied by the path gain and can, therefore, produce large output errors. For this reason, zero autocalibration in the NGDR-03C is performed at the input to the Programmable Gain Amplifier (PGA). As shown in Figure 3.9.4-1, the PGA accepts the output of the 12-bit autozero DAC. Autozero adjustment range is ±10 mV, which correspond to an adjustment resolution of 4.7 µV per DAC LSB.

Electrical power for the NGDR-03C analog networks is supplied by the DC-to-DC Converter shown in Figure 3.10-1. The converter transforms 5 V logic power into regulated and isolated ±15 VDC power with a load capacity of approximately 190 mA on each 15 V bus.



ABB CI570 3BSE001440R1
ABB PP865A 3BSE042236R2
REXROTH VT-HNC100-1-23/W-08-0-0 R900955334
MICRO MC2-440-10TVB-1-20
HIMA F8652X 984865265
HIMA F8628X 984862865
ABB UNITROL 1020 UNS0119A-Z,V1 3BHE030579R0003
ALSTOM BGTR8HE 24491276A1004
SCHROFF MPS022 13100203
ALSTOM PIB100G 3BEE0226
ALSTOM PIB102A 3BEB0180
ALSTOM PIB310 3BHB0190
ALSTOM PIB1201A 3BEC0067
Honeywell SPS5710 51199929-100
Honeywell SPS5710-2-LF 51198685-100
