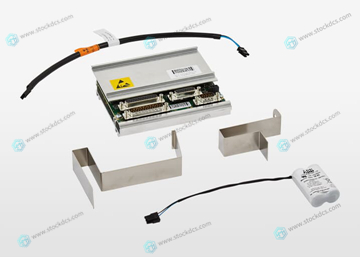

ABB 3HAC046686-002 SMB Replacement Set
If one 3HAC046686-002 is faulty it is possible to change from Standard Roll to Single Side Measurement.
For load cell connections, please refer to cable diagrams in Appendix B, C, D, E, F or G for the
load cell type used in the installation.
Depending on which load cell that is faulty, do the following:
Load cell A is faulty:
1. Disconnect load cell A from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:3 and X1:4.
Load cell B is faulty:
1. Disconnect load cell B from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:7 and X1:8.
After having changed the load cell connections, one parameter setting in the Tension Electronics
must be changed.
Use the menu below to change from StandardRoll to Single Side A or Single Side B.
