  • A-B 80190-019-51B circuit board

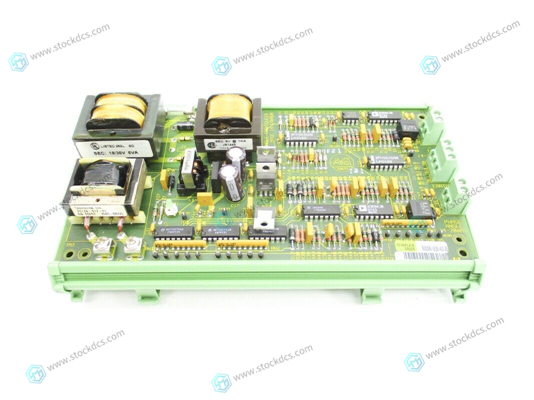

A-B 80190-019-51B circuit board

A-B 80190-019-51B circuit board

A-B 80190-019-51B circuit board

The voltage input signals are connected directly to the 10-pole terminal block (E0 … E7 and COM). To minimize the amount of interference coupled into the module via the transmission lines, connection should be made according to the principle explained below.

This A-B 80190-019-51B can interact with the

watchdog, if it is used on base address 240.

I/O modules and I/O terminal blocks may only be plugged in and removed when the Saia PCD® and the external +24 V are disconnected from the power supply.Analogue input module, 8 inputs (channels), resolution 10 bit, signal range 0 … 10 V,

(the channels themselves not separated), connection with pluggable spring terminals,

plug-in type L (4 405 4847 0) included

The reference potentials of signal sources should be wired to a common GND connection (“–” and “COM”terminals). To obtain optimum

measurement results, any connection to an earthing bar should be avoided.

A-B 80190-019-51B.jpg
