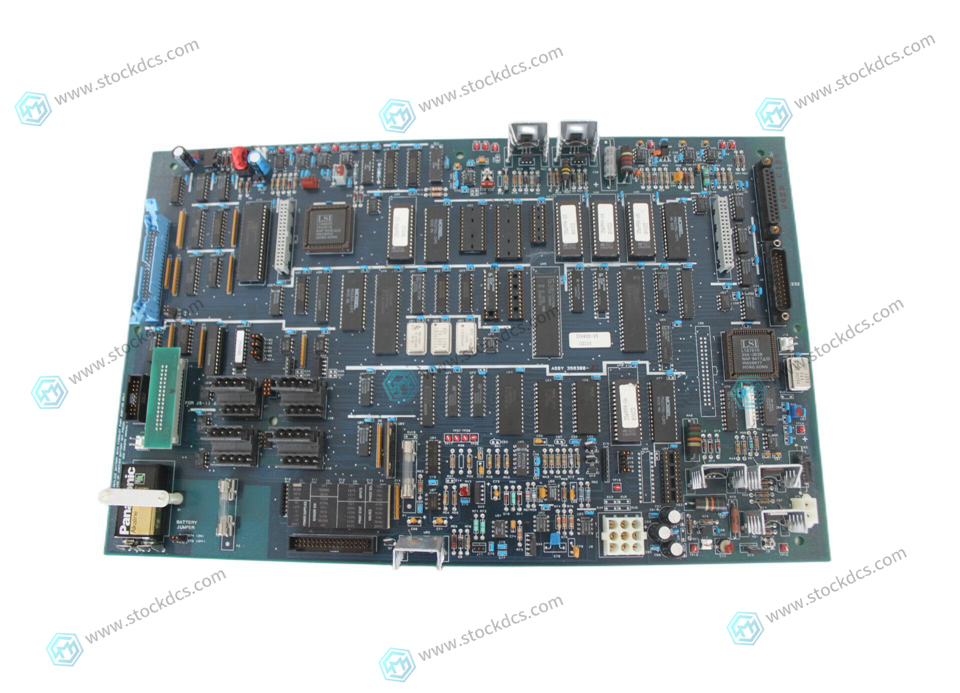

VIDEOJET 356300-J2 Analog control board

VIDEOJET 356300-J2 Analog control board

The contents of the VIDEOJET 356300-J2 will only be retained during system power-down while the battery is able to supply sufficient current to maintain the SRAM cell array. VIDEOJET uses a CR2430 lithium button cell battery with a capacity of 285mAh. It produces a nominal 2.9 V output with a flat discharge curve until the end of its effective live, and thus is suitable for providing battery backup to low-power SRAMs.

The Battery will reach the end of its useful life, limiting the Data Retention Time, for one of two reasons:

• The effects of aging will have rendered the cell inoperative before the stored charge has been fully consumed by the SRAM. This is called Battery Lifetime.

• It becomes discharged by providing current to the SRAM in the battery backup mode. The time the battery can supply the SRAM is called Data Retention Time. It depends on Battery Capacity and SRAM Standby Current. Whenever the VIDEOJET 356300-J2 is powered up, the SRAMs are supplied by system-power and no current is drawn from the battery. Only when the VIDEOJET 356300-J2 is powered down, the SRAM supply is switched from systempower to the on-board battery

• Contact: manager ye

• E-mail: xiamen2018@foxmail.com

• Company: Rui Chang Ming sheng automation equipment co., LTD

• Telephone: +86 15270269218

Reproduced please attach this link: http://www.stockdcs.com/

Our products

A company specializes in the sales of module spare parts of global famous brands (DCS system) (robot system) (large servo control system). The company's products include distributed control system (DCS), programmable controller (PLC), MOTOROLA MVME industrial module, industrial control communication converter (Anybus), remote output/input module (RTU), industrial computer (IPC), industrial low screen screen (IPC) HMI SCSI (50, 68, 80Pin) AnyBus (Gateway) has become a global sales enterprise of industrial automation spare parts and components
