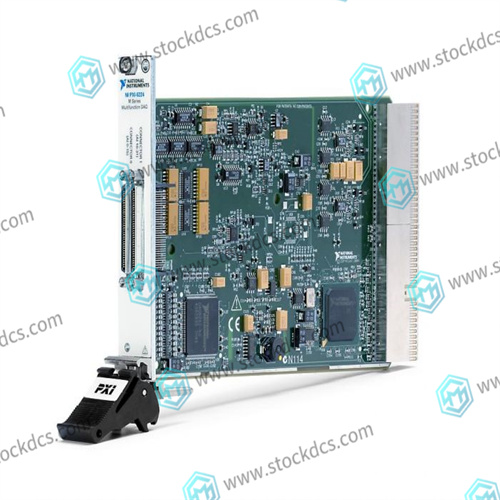

NI PXI-6224 is a high-performance multifunctional data acquisition card that provides a wide range of applications and flexible configuration options. The following are the detailed parameters and functions of the product:

Number of channels: 16 single ended or 8 differential analog input channels.

Resolution: 16 bit ADC (analog-to-digital converter), providing high-precision data acquisition.

Maximum sampling rate: 250 kS/s (single channel), 100 kS/s (multi-channel). You can choose different sampling rates based on application requirements.

Input range: Programmable gain, supporting multiple input range options, such as ± 10 V, ± 5 V, and ± 1 V.

Digital I/O: With 8 digital input channels and 8 digital output channels, it can be used for digital control and triggering operations.

Timing/counting function: Provides two 16 bit timing/counter channels, supporting applications such as frequency measurement, pulse counting, and encoder interface.

External trigger: Supports external trigger signal input, used to synchronize the triggering of multiple devices or external events.

Hardware triggering: Supports multiple hardware triggering modes, such as analog comparison triggering and digital comparison triggering.

PXI bus interface: Adopting PXI bus standard interface, it can perform high-speed data transmission and synchronization operation with other PXI devices.

Software support: The accompanying NI-DAQmx software provides rich APIs and drivers for configuration, data collection, and analysis operations.

Development platform: Compatible with LabVIEW and other common programming languages (such as C/C++, Python, etc.), making it convenient for users to develop and integrate applications.

NI PXI-6224 is widely used in fields such as data acquisition, signal processing, measurement, and control. Its high performance and flexibility make it an ideal choice for engineers and scientists to conduct real-time data collection and control. Whether in research laboratories, industrial automation, or testing and measurement applications, this product can provide reliable and accurate data collection capabilities.
