NI PXIe-5122 data acquisition module

Product Details Introduction

NI PXIe-522 is a high-performance data acquisition module from National Instruments (NI), based on the PXI Express bus architecture, providing high-speed and high-precision signal acquisition capabilities. The following are some main features of the NI PXIe-5122 module:

High speed data acquisition: The PXIe-5122 module supports high-speed data acquisition and has the ability to achieve high sampling rate and wide bandwidth. It can simultaneously collect data from multiple channels at a high speed, making it suitable for accurate collection of rapidly changing signals.

High resolution and low noise: This module is equipped with a high-precision analog-to-digital converter (ADC), which can provide high-resolution data acquisition and has a lower noise level. This helps to improve the accuracy and quality of the signal.

Multi channel acquisition: The PXIe-5122 module supports multi-channel data acquisition and can simultaneously collect multiple signal sources. It has multiple input channels and can adapt to application scenarios where multiple signals need to be collected.

Flexible triggering and synchronization: The module provides flexible triggering and synchronization functions, allowing precise data collection and control according to application requirements. It supports multiple triggering modes and external clock synchronization to meet the synchronization requirements of different applications.

Software support and integration: The PXIe-5122 module can be integrated with NI's software platform and toolset, such as LabVIEW, LabWindows/CVI, and Measurement Studio. This allows for convenient data collection, analysis, and visualization, as well as integration with other instruments and equipment.

PXI Express Platform Compatibility: The module is based on the PXI Express bus architecture and has characteristics such as high bandwidth, low latency, and scalability. It is compatible with other PXI Express modules and devices, and can form a complete testing and measurement system with other modules.

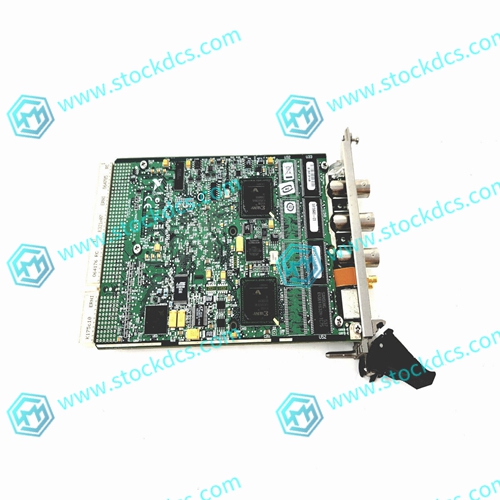

Product image
